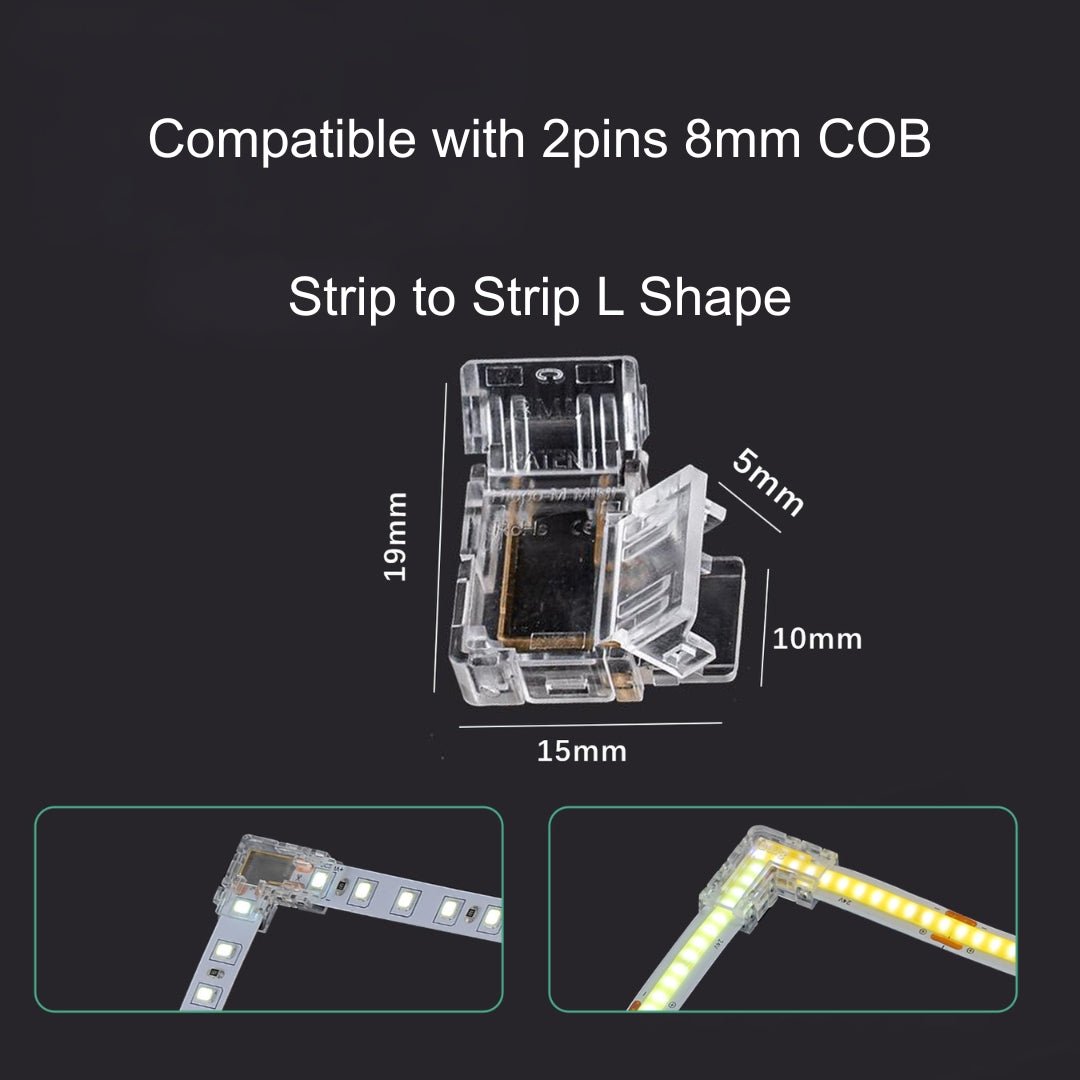

LED strip connector solderless 8mm

2pin COB LED Strip Connector Extension Wire Terminal LED Connectors for 2835 5050 SMD COB Tape Lights Fixed Clamp Clips

Connectors: Universal for IP20/30 non-waterproof(no glue coating) SMD / COB LED strip, IP54/65 waterproof (one side glue coating) SMD LED strip.

Fixing Clips:only for IP20/30 non-waterproof(no glue coating) SMD / COB LED strip, not for IP54/65 waterproof (one side glue coating) SMD LED strip.

Application: These upgraded mini 2pin COB LED connectors are suitable for 8mm DC12V/24V flexible COB LED strip lights. With it, you can quickly connect your COB LED strips to wire without soldering.

Material: The upgraded mini COB LED connector is made of PC material and pure copper, which is durable, transparent and beautiful. Voltage: 0-36V; Current: 5A. Suitable for 24-22AWG.

It can be easily opened by hand without tools and can be reused. The mini design is just right for the light bar and will not fall off. The pure copper material makes it more conductive and will not make poor contact. There is no dark area after connecting the two light strips tightly.

Open the connector cover to 60 degrees by your hand. Insert your COB LED strip to the end of strip side of the connector, and close the cover. Strip the plastic layer of the extension wire to expose the copper core, connect the connector wire ends, and close the cover. Plesae make sure the positive and negative connections are correct.
