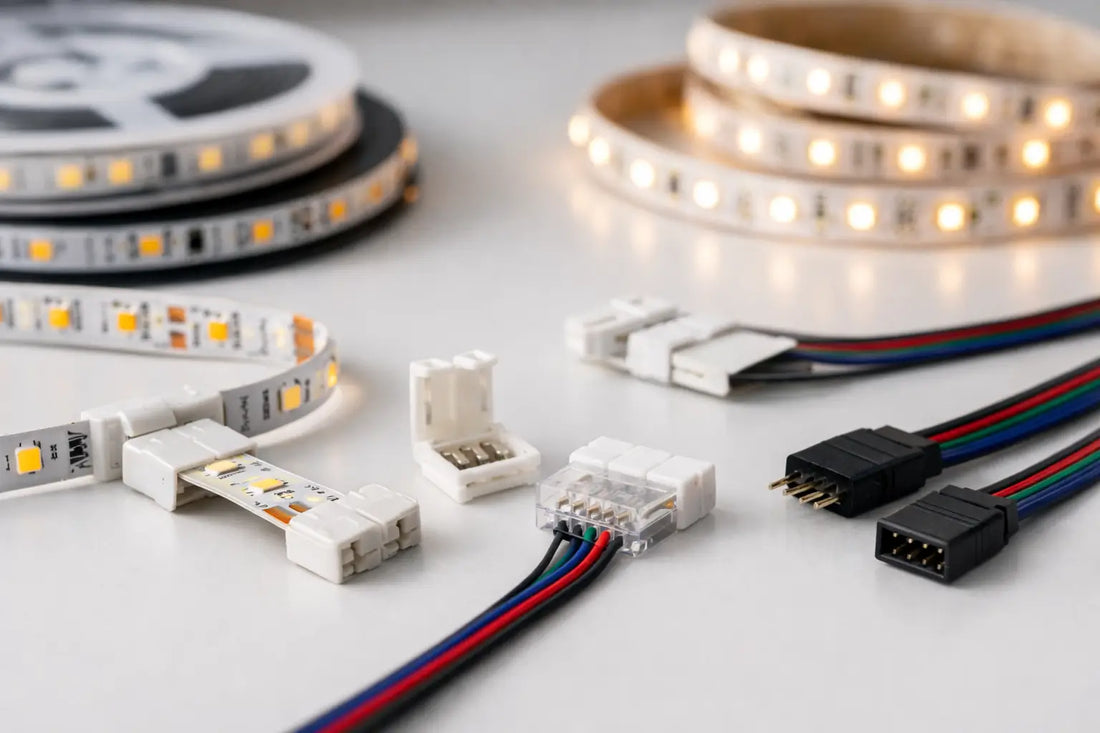

LED Strip Connector Types Explained Clearly

A lot of LED strip problems start with one small part that gets treated like an afterthought - the connector. If you have ever unboxed your strip, driver, and controller and then realized the pieces do not actually join, this guide on LED strip connector types explained will save you time, rework, and a few renovation-day headaches.

The good news is that most connector confusion comes down to four things: strip width, voltage, pin count, and where the connection needs to sit. Once you know those, choosing the right connector becomes much more straightforward. And if you are planning cove lighting, cabinet lights, or display shelves, getting this part right matters just as much as choosing the strip itself.

Why connector choice matters more than people expect

A connector is not just a physical join. It affects how reliable the strip will be after installation, especially in warm ceiling voids, tight carpentry details, or long runs where a loose contact can cause flicker or a dead section.

This is why cheap, generic connectors can be frustrating. They may fit loosely, fail to grip COB strips properly, or mismatch the copper pad layout. On paper they look similar. In practice, a 2-pin connector for one strip type may be completely wrong for another.

For homeowners, the main goal is simple: buy parts that match the strip and work the first time. For contractors and designers, it is also about consistency. If one connector type works across multiple rooms, installs move faster and replacements are easier.

LED strip connector types explained by function

The easiest way to understand connectors is by what they do, not by what sellers happen to call them.

Clip-on strip-to-strip connectors

These join one LED strip directly to another without extra wire in between. They are commonly used when you need a straight connection between two cut sections of the same strip.

They are useful when extending a run in a neat, linear layout, such as under a cabinet or inside a pelmet. The trade-off is flexibility. If the installation has a bend, offset, or tight corner, a rigid strip-to-strip connector may not sit well.

Strip-to-wire connectors

These connect the LED strip to a pair of wires, or more wires depending on the strip type. This is one of the most practical connector styles because it gives you freedom in routing.

You might use this when the LED strip is hidden inside a cove but the driver or controller sits elsewhere. Instead of forcing the strip around a difficult transition, you terminate the strip cleanly and continue with wire. In many real renovation setups, this is the most forgiving option.

Wire-to-wire splice connectors

These do not attach directly to the strip. They join wires to wires, usually after a strip-to-wire connector has already been used. They help when extending cable runs between strips, controllers, and drivers.

They are simple, but they still need correct wire size matching. A loose splice can create intermittent issues that look like a strip failure when the real problem is in the connection point.

Corner connectors

These are designed to turn a strip around a 90-degree angle. They can look like an easy fix for shelves, cabinets, and rectangular details.

Sometimes they are. Sometimes they are more trouble than they are worth. The reason is alignment. If your carpentry corner is not perfectly square, or if the strip channel is narrow, a corner connector can put stress on the contact points. In many installations, a short strip-to-wire jumper handles corners more reliably than a rigid corner piece.

Jumper connectors

These are similar to strip-to-strip connectors, but with a short wire between the two ends. They bridge small gaps and let you change direction more naturally.

This style is especially useful around cabinet breaks, shelf divisions, or places where the strip cannot continue as one uninterrupted line. You get flexibility without needing to solder.

Matching connector type to strip type

This is where most mistakes happen. A connector is never universal just because the strip "looks standard."

2-pin connectors

These are usually for single-color LED strips. If your strip only does one fixed color temperature or one fixed color output, it is likely using 2 pins: positive and negative.

A basic warm white COB strip typically uses this setup. If you are installing cove lighting or under-cabinet lighting with a single white tone, this is often the connector family you need.

3-pin connectors

These are less common in typical residential white strip setups, but may appear in certain addressable or specialty strips. If your strip product spec says 3-pin, do not assume a 2-pin connector can be adapted. It cannot.

4-pin connectors

These are commonly used for RGB strips or some tunable white configurations, depending on the strip design. The pin count must match exactly, and the contact layout must match too.

This matters because two 4-pin strips may still be different in function. One may be RGB. Another may be RGBW or a different control format. Matching only the number of pins is not enough.

5-pin and 6-pin connectors

These are often used for RGBW, RGBCCT, or other multi-channel strips. They are more common in advanced decorative setups where color control or tunable white is part of the design.

If you are planning smart control, especially with tunable white strips and a controller, connector choice becomes part of the whole system. Strip, connector, controller, and driver all need to agree with each other.

Width matters just as much as pin count

When people search LED strip connector types explained, they often focus on pins and forget strip width. But width is just as important.

Common LED strip widths include 8mm, 10mm, and 12mm. A connector built for 10mm strip will not securely hold an 8mm strip, even if the pin count seems correct. A poor fit can lead to weak contact, partial lighting, or failure after a short period.

COB LED strips add another layer here. Because COB strips create a smooth, dot-free glow, many homeowners prefer them for visible applications. But some connectors designed for standard SMD strips do not grip COB strips properly. The contact pads may be positioned slightly differently, or the connector lid may not clamp evenly.

That is why "close enough" is usually not close enough with connectors.

What to check before you buy

Before ordering connectors, look at the strip specification and confirm five details: voltage, strip width, pin count, IP rating, and whether the strip is COB or standard SMD.

Voltage comes first because 12V and 24V systems are planned differently, especially for longer runs. The connector itself does not usually change the voltage, but it is part of a setup that must stay consistent.

IP rating matters if the strip has a silicone coating or sleeve. A connector for non-waterproof strip may not fit a waterproof strip unless the covering is removed at the connection point. That can be done in some setups, but it changes the finish and may not suit every location.

It also helps to check whether the connector is meant for solderless installation or whether soldering still gives the better result for your application. Solderless connectors are fast and convenient. Soldered joins are often better for permanent, hard-to-access installs. It depends on the site condition, who is installing it, and how easily the connection can be revisited later.

When solderless connectors are the right call

Solderless connectors are great when you want speed, a cleaner buying process, and less installation friction. For many residential projects, they are the practical choice.

They make sense for straightforward cabinet lighting, shelf lighting, and cove runs where the strip layout is already planned and compatible accessories are available. They are also useful for homeowners who want a reliable connection method without getting into soldering tools.

The limitation is that they rely on mechanical pressure. If the strip is being twisted, pushed into a tight channel, or installed in a spot where access is poor, that pressure connection may be more vulnerable over time than a proper soldered joint.

The most common connector mistakes

Most connector issues are predictable. Buying by photo instead of spec is one. Assuming all COB strips use the same accessory is another. A third is forgetting that controllers and dimming setups may change what kind of connector path you need.

Another common mistake is planning the strip path first and the access later. A connection point hidden inside a very tight false ceiling detail may be difficult to troubleshoot if something shifts. Where possible, keep joins accessible or reduce the number of joins altogether.

For renovation projects, this is one of those small decisions that affects the whole result. A smooth glow with no flicker looks effortless, but it usually comes from getting the basic compatibility right from the start.

If you are choosing between a few connector options and they seem almost identical, slow down and match them against the exact strip specs rather than the product photo. That extra minute is often what keeps your lighting plan simple, clean, and working the way it should.
