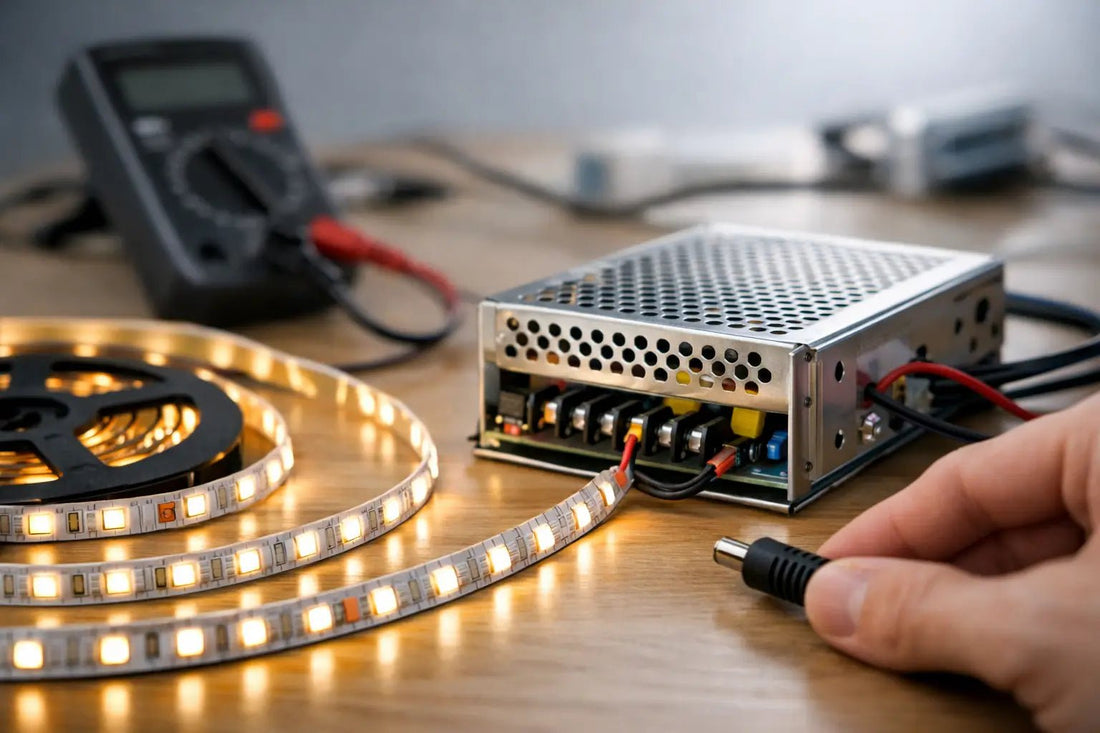

How to Size LED Strip Power Supply Right

A LED strip that looks perfect on paper can still fail in a real renovation for one simple reason - the power supply was guessed instead of sized. That usually shows up as dim sections, flicker, early driver failure, or a strip that never reaches the smooth, even glow you paid for. If you are figuring out how to size LED strip power supply for a home project, the good news is that the math is straightforward once you know what to check.

For most residential installs, you only need four things: the strip voltage, the strip wattage per meter or per foot, the total strip length, and a sensible safety buffer. Get those right, and the rest of the setup becomes much easier to plan.

How to size LED strip power supply without guesswork

Start by matching voltage first. If your LED strip is 24V, the power supply must also be 24V. If your strip is 12V, use a 12V power supply. Higher or lower is not close enough here. Wrong voltage is one of the fastest ways to damage the strip or end up with unstable performance.

Next, calculate the total wattage of the LED strip run. The formula is simple:

Total strip wattage = watts per meter x total meters

If your strip is rated in feet, use watts per foot instead. For example, if you have a 24V COB strip rated at 12 watts per meter and your cove needs 4 meters, the total load is 48 watts.

After that, add a buffer. We generally recommend sizing the power supply at around 20 to 30 percent above the actual calculated load. So for a 48-watt strip load, you would look for a power supply rated around 60 watts. That extra headroom helps the driver run cooler and more reliably over time.

The quick formula looks like this:

Power supply size = total strip wattage x 1.2 to 1.3

That is the core of how to size LED strip power supply correctly. But real projects often include dimmers, multiple runs, tunable white setups, and hidden cove details. That is where the small details matter.

The three numbers that matter most

The first is voltage. Every LED strip is designed around a fixed input voltage, usually 12V or 24V for residential strip lighting. For longer runs, 24V is often the better choice because voltage drop is easier to manage. In practical terms, that means more consistent brightness across the length of the strip, especially for cove lighting, wardrobes, and long ceiling details.

The second is wattage per meter. This tells you how much power the strip draws. A decorative low-output strip might use 4.8 watts per meter, while a brighter COB strip for cove lighting could be 10, 12, or 15 watts per meter. Higher brightness generally means higher power draw, so never assume all strips need the same driver.

The third is total length. This sounds obvious, but it is where many buying mistakes happen. People often size the power supply based on one reel instead of the actual installed length. If your living room cove uses 7.2 meters, that full 7.2 meters needs to be in the calculation, not just the nearest standard reel size.

A simple worked example

Let us say you are installing warm white COB LED strip in a false ceiling.

Your strip specs are 24V and 14 watts per meter. The cove length is 5 meters.

First, calculate strip load:

14 watts x 5 meters = 70 watts

Then add 20 to 30 percent buffer:

70 x 1.2 = 84 watts
70 x 1.3 = 91 watts

In this case, an 80-watt power supply is a little tight. A 100-watt power supply is the safer choice.

That does not mean bigger is always better with no limits. It means you want enough headroom for stable operation without undersizing the driver. Choosing the next common size up is usually the right move.

Why headroom matters

A power supply should not be pushed to its maximum rating all the time. When a driver runs too close to full load continuously, heat builds up, lifespan can shorten, and performance can become less stable. In a concealed ceiling space or cabinet where ventilation is limited, that matters even more.

This is why a 60-watt strip load should usually not be paired with a 60-watt driver. It may turn on, but it leaves no breathing room. A properly sized driver gives you better reliability and fewer surprises after the renovation is complete.

There is a trade-off, though. Oversizing too aggressively can be unnecessary if the unit is much larger, more expensive, or harder to conceal. For most home installs, the sweet spot is simply the next practical size above your buffered load.

One large driver or multiple smaller ones?

It depends on the layout. If you have one continuous cove with a manageable run length, one properly sized driver may be the cleanest option. But if the lighting is split across several zones, cabinets, or ceiling sections, using multiple drivers can make wiring simpler and reduce long cable runs.

This matters because cable length affects voltage drop too. Even if your power supply wattage is correct, long wire runs between driver and strip can still cause dimming at the far end. That is not a power rating issue alone - it is also a wiring design issue.

For larger spaces, splitting the load into separate runs can improve consistency. It also makes future replacements less disruptive since you are not relying on one oversized unit to power everything.

Don’t forget dimmers and controllers

If your LED strip setup includes a dimmer, smart controller, or tunable white controller, make sure the entire system is compatible. The power supply still needs to match the strip voltage and total wattage, but the controller also has its own current or wattage limit.

For example, a tunable white strip uses two channels - warm and cool. Depending on the controller and how the strip is specified, your sizing approach may need extra attention. Some customers only calculate one channel and forget the total system load. That leads to mismatched components even when the strip itself is correct.

If you are dimming a strip, it is also worth checking whether you need a constant voltage LED driver designed for that control method. Not all dimming setups behave the same way, and this is one area where product compatibility matters more than generic wattage math.

Common sizing mistakes we see

The most common mistake is ignoring the buffer and buying a driver with the exact same wattage as the strip load. The second is mixing up 12V and 24V products. The third is forgetting to calculate the actual installed length.

Another common issue is treating all LED strips as interchangeable. COB strips, high-CRI strips, and tunable white strips can have different power demands even if they look similar in photos. Always size from the actual specification, not from memory or a previous project.

Then there is the hidden mistake: buying for brightness first and power second. A brighter strip often needs a larger driver, thicker wiring, and more thought about run length. That does not make it a bad choice - it just means the driver should be planned as part of the lighting system, not as an afterthought.

A practical rule for home renovations

If you want a reliable shortcut, use this process every time. Match the strip voltage exactly. Multiply watts per meter by total length. Add 20 to 30 percent headroom. Then choose the next standard driver size above that number.

For many residential cove lighting and cabinet lighting jobs, that gets you very close to the right answer without overcomplicating the project. If the layout is long, split across zones, or uses smart controls, pause and check the full system instead of sizing by strip alone.

At THE LIGHTING GALLERY, this is the part we always encourage customers to get right early, because a correctly sized driver is what turns a good LED strip into consistent, no-flicker lighting you can enjoy every day.

When to ask before buying

If your strip run is unusually long, if you are feeding multiple sections from one driver, or if you are combining tunable white strips with controllers, it is worth double-checking the specs before you order. A five-minute review of voltage, wattage, and layout can prevent the kind of mismatch that only shows up after the false ceiling is closed.

The best LED strip setup is not just bright enough. It is balanced - correct voltage, enough headroom, and components that work together cleanly. Get that part right, and the result is exactly what most homeowners want: smooth light, stable performance, and one less renovation problem to chase later.
