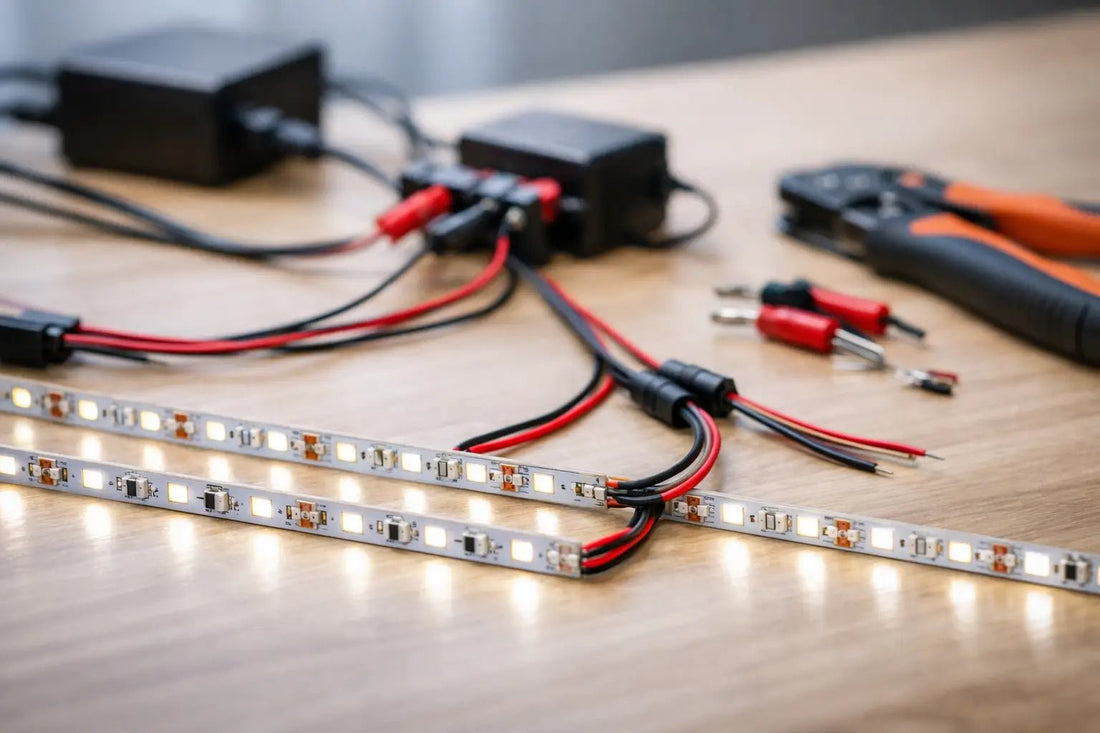

How to Wire Parallel LED Strip Runs

One LED strip run looks simple. Two or three runs fed from the same driver is where many renovation setups go wrong. If you are figuring out how to wire parallel LED strip runs, the goal is not just getting them to turn on - it is getting even brightness, stable performance, and a layout that will not give you trouble after the ceiling is closed up.

Parallel wiring is usually the right answer when you have multiple LED strip sections that should all receive the same voltage directly from the power source. In practical terms, each run connects back to the driver output instead of one strip feeding the next. That matters because LED strips are sensitive to voltage drop, and the longer the path, the more likely you are to see one section look dimmer than the others.

Why parallel wiring is usually better

For most residential strip lighting, especially under cabinets, in cove ceilings, or around TV features, parallel wiring gives each run a fairer shot at full brightness. Every strip run sees the same supply voltage at the start of the run, assuming your cable lengths and wire sizes are sensible.

Series-style daisy chaining sounds easier at first because there are fewer wires to manage. The problem is that the later strips in the chain often get less voltage. That can show up as reduced brightness, uneven white tone, or inconsistent dimming. With high-CRI COB strips, that difference becomes even more obvious because the whole point is a smooth, premium light output.

Parallel wiring also makes planning easier when your layout has separate left and right coves, multiple shelves, or segmented wardrobe lighting. If one run ever needs replacement, you are dealing with an individual branch instead of disrupting the whole chain.

How to wire parallel LED strip runs correctly

The basic idea is simple. The positive output from the LED driver goes to the positive input of each strip run, and the negative output goes to the negative input of each strip run. Each run is connected across the same output, not through the previous strip.

Think of it as a hub-and-spoke layout. The driver is the hub. Each strip run is its own spoke.

If you are using a single-color constant-voltage strip, such as 24V COB, each branch needs the same polarity. Positive to positive, negative to negative. If you are working with tunable white or RGB setups, there are more channels involved, so the wiring must match the controller output exactly. The principle is still parallel, but the number of conductors increases.

This is where many homeowners and even contractors make a costly assumption: if the voltage is correct, any driver will do. Not quite. Voltage must match, but driver capacity must also cover the total wattage of all parallel runs combined.

Start with the driver, not the strip

Before you cut anything, calculate the full load. Add up the wattage of every LED strip run that will be connected in parallel. If your strip is rated at 10 watts per meter and you have three runs of 4 meters each, that is 120 watts total.

Then give yourself headroom. A driver should not be selected right at the limit for a permanent lighting install. Extra margin helps with heat, long-term reliability, and stable output. In real renovation work, this is one of the easiest ways to avoid flicker, stress on components, and early failure.

You also need to match the strip voltage exactly. A 24V strip needs a 24V driver. A 12V strip needs a 12V driver. Mixing that up will not cause a small performance issue - it will cause a major one.

If dimming or smart control is part of the plan, include the controller in the wiring path correctly. In most setups, power goes from the driver to the controller, then from the controller to each strip run in parallel. The controller also needs to be rated for the total load.

Planning wire routes for cleaner installs

The neatest electrical plan is not always the shortest physical route. In false ceilings and built-ins, you often need to choose between a central driver location and a more balanced cable layout.

A central driver can make maintenance easier, but if one parallel branch becomes much longer than the others, that branch may experience more voltage drop. That does not always mean failure, but it can lead to small brightness differences. In compact residential layouts, this might be minor. In longer cove runs or large feature walls, it becomes more noticeable.

A better approach is to place the driver where branch lengths stay reasonably balanced. You do not need every wire to be identical in length, but you do want to avoid one short run and one very long run if both are meant to look identical.

Wire gauge matters too. Thin cable over longer distances creates more resistance. If you are feeding several meters of strip from a driver tucked far away in a cabinet or ceiling access point, stepping up wire size can help preserve voltage at the strip input.

Common ways parallel LED strip runs are connected

In real projects, parallel strip runs are usually wired one of three ways. The first is a direct home-run method, where each strip run has its own pair of wires back to the driver or controller. This is the cleanest electrically and the easiest to troubleshoot.

The second uses a distribution point. A heavier supply cable runs from the driver to a junction location, and from there, separate branch wires feed each strip. This can simplify long layouts and reduce cable clutter near the driver.

The third uses compatible connectors for shorter, accessible branch points. This can speed up installation, but only if the connectors are rated properly and used in suitable locations. For concealed ceiling work, reliability matters more than shaving a few minutes off the install.

None of these is universally best. It depends on access, total load, branch length, and whether you may need to service the setup later.

Mistakes that cause uneven brightness

When customers ask why one strip run looks weaker than another, the cause is usually not the strip itself. It is usually the wiring plan.

The most common mistake is daisy chaining multiple runs when they should have been wired in parallel. The second is undersizing the driver. The third is ignoring cable length and wire thickness. A fourth issue, especially with tunable white or smart systems, is mixing up channels or using a controller that cannot handle the total current.

Another mistake is treating all LED strips as equal. They are not. Higher-output strips pull more power, and COB strips designed for smooth dot-free lighting may have different installation expectations than basic tape light. If the strip is intended for a clean architectural result, the supporting components need to match that standard.

When parallel wiring is not the whole story

Parallel wiring solves distribution, but it does not remove the strip's own maximum run length limits. Every LED strip has a practical maximum length per feed point. If you exceed that on a single continuous run, the far end can still dim, even though the overall layout is wired in parallel.

That is why larger installations often use parallel-fed segments rather than one extra-long strip. For example, a long cove may be split into two or more runs, each powered separately in parallel, even if visually it reads as one continuous line of light.

This is especially useful in homes where lighting details are meant to look refined, not patchy. A smooth glow in a living room cove or bedroom headboard niche depends as much on electrical planning as on the strip quality itself.

A practical example

Say you have two 3-meter cove runs on opposite sides of a living room and one 2-meter run above a TV feature. All three are 24V COB strips at 12 watts per meter. Your total load is 96 watts.

In that setup, each run should be wired back in parallel from the controller or driver output. You would not connect cove run one into cove run two, then into the TV feature. That would increase voltage drop and make matching brightness harder.

A better layout is one properly sized 24V driver with enough headroom, one controller if dimming or smart control is needed, and three separate branch outputs to the three strip runs. If the TV feature branch is much longer because of the route, use suitable cable sizing so that run does not become the weak point.

That is the kind of setup we recommend at THE LIGHTING GALLERY because it keeps the result predictable. You get cleaner light, easier troubleshooting, and fewer surprises once the carpentry and paintwork are done.

Before you close up the ceiling

Test every branch at full brightness before the final finish goes on. Check that all runs match in output, that dimming is stable, and that no connectors feel loose or warm. It is much easier to fix a branch layout during installation than after the coves are sealed and painted.

If there is one rule worth remembering, it is this: LED strip lighting looks simple, but good strip lighting is planned like a system. Get the voltage right, size the driver with margin, keep runs within limits, and wire each branch in parallel when you want even, dependable light. That extra care is what turns a strip install from merely working into looking right every evening.
