Cove Lighting Singapore HDB — Complete Setup Guide 2026
Complete Guide to Cove Lighting in Singapore HDB and BTO Homes (2025)
SEO Title: Cove Lighting Singapore HDB — Complete Setup Guide 2025 | TLG Meta Description: Everything you need to know about HDB cove lighting in Singapore — height, LED strip type, driver sizing, colour temperature and common mistakes. Shop local. Slug: cove-lighting-singapore-hdb-guide Category: Lighting Guides
Cove lighting is one of the most searched lighting topics among Singapore homeowners — and for good reason. Done right, it transforms a flat HDB ceiling into something that looks twice as expensive. Done wrong, it leaves you with hotspots, yellow patches, or strips that fail within a year.
This guide covers everything: the right LED strip type, how high to position the cove, driver sizing, colour temperature choices, and the mistakes most homeowners make. Whether you are planning a new BTO or renovating a resale flat, read this before you brief your electrician.
What is cove lighting?

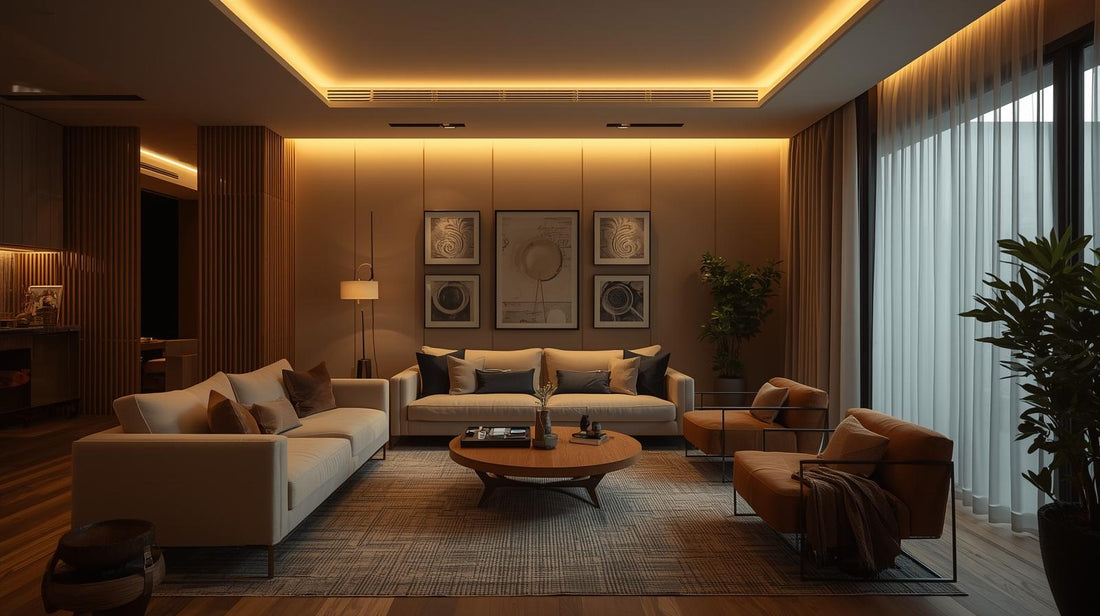

Cove lighting is indirect lighting hidden inside a recessed ledge or L-box built into your false ceiling. The LED strip sits inside the cove facing upward or toward the wall, so the light source is never visible — only the soft glow it casts across the ceiling.
It is different from downlights, which shine directly downward. Cove lighting bounces off the ceiling surface, creating ambient illumination that feels warm and spacious rather than harsh and clinical.
In Singapore HDB and BTO flats, cove lighting is almost always installed inside a gypsum board false ceiling. The cove itself is typically built by your interior designer or contractor as part of the false ceiling carpentry work.
Why cove lighting works so well in HDB flats
Singapore HDB ceilings are typically 2.6 to 2.75 metres high. That is not a lot of vertical space to work with. Direct ceiling lights can make low ceilings feel even lower.
Cove lighting does the opposite. Because the light washes upward across the ceiling, it draws the eye up and creates the illusion of height. A well-lit cove can make a 2.6m ceiling feel closer to 3m — without hacking a single wall.
It also solves the glare problem. Direct downlights can be harsh when you are sitting on a sofa watching TV or lying in bed. Cove light is diffused and directional enough that it rarely causes glare regardless of where you are in the room.
The right LED strip for HDB cove lighting
This is where most homeowners go wrong. Not all LED strips are suitable for cove lighting.
Use COB LED strips, not SMD
Standard SMD strips (the kind with visible individual LED dots) create a dotted light pattern that shows as uneven patches on your ceiling — especially visible on smooth white gypsum surfaces. This looks cheap and is very difficult to fix after installation.
COB (Chip-on-Board) LED strips have hundreds of tiny LEDs packed tightly together along a continuous phosphor layer. The result is a perfectly even, seamless line of light with no visible dots or hotspots. This is the correct choice for cove lighting in HDB homes.
At TLG, our 24V COB LED strip has 320 to 480 LEDs per metre depending on the variant, giving a completely dotless finish even on close-range ceiling reflection.
Use 24V, not 12V
12V LED strips have a higher voltage drop over long runs. In a typical HDB living room cove that runs 4 to 6 metres, a 12V strip will visibly dim toward the far end — brighter near the driver, dimmer at the end. This is one of the most common complaints from homeowners after installation.
24V strips maintain consistent brightness across runs up to 10 metres without needing mid-run power injection. For HDB cove lighting, always specify 24V to your contractor.
CRI matters more than wattage
CRI (Colour Rendering Index) measures how accurately a light source shows the true colour of surfaces. A CRI of 80 is standard. A CRI of 90 and above is high.
In a living room or bedroom, low CRI cove lighting makes your walls, furniture and skin tones look washed out or slightly wrong — you may not be able to name exactly what is off, but the room feels flat. High CRI lighting makes everything look richer and more natural.
Our COB LED strips are rated CRI95+, which is among the highest available for residential LED strips. For cove lighting that will be the primary ambient light source in your living room or bedroom, do not compromise on CRI.
Cove height and positioning
The physical position of the cove ledge inside your false ceiling determines the quality of the light wash on your ceiling above it. This is something to discuss with your ID or contractor before they build the false ceiling — it cannot be adjusted after.
Recommended cove height for HDB flats
For a standard HDB ceiling of 2.6 to 2.75 metres, the top of the cove opening should be 150 to 220mm below the ceiling slab.
If the cove is too close to the ceiling (less than 120mm), the light concentrates in a narrow band and you see a bright hot line directly above the cove. If the cove is too far from the ceiling (more than 250mm), the light throw is insufficient and the ceiling looks dim.
150 to 220mm is the sweet spot for a smooth, even ceiling wash with no visible source.
Cove depth and LED strip position
The LED strip should sit at the back of the cove channel, as far from the cove opening as possible. This maximises the angle of light projection and reduces the risk of the strip being visible from any seated position in the room.
A minimum cove depth of 80mm is recommended. Less than this and the strip may be visible from certain angles.
Distance from wall
The cove should be built at least 150mm from the nearest wall. Too close and the light falls mostly on the wall rather than the ceiling, creating an uneven side-wash effect instead of a ceiling wash.
Driver sizing for cove lighting
The LED driver powers your strip. Getting the wattage wrong is one of the most common and easily avoided installation mistakes.
How to calculate the right driver wattage
- Measure the total length of LED strip in metres
- Multiply by the wattage per metre of your chosen strip
- Add 20% headroom
For our TLG 24V COB strip at 12W per metre:
- 5 metre run: 5 × 12W = 60W. Add 20% = 72W minimum driver. Use an 80W driver.
- 8 metre run: 8 × 12W = 96W. Add 20% = 115W minimum driver. Use a 120W driver.
- 10 metre run: 10 × 12W = 120W. Add 20% = 144W minimum driver. Use a 150W driver.
The 20% headroom prevents the driver from running at full load, which extends its lifespan significantly. A driver running at 100% capacity runs hotter and degrades faster.
Our 24V LED drivers are available in multiple wattages from 30W to 200W to match any cove length.
Where to install the driver
The driver should be installed inside the false ceiling cavity, accessible via a removable panel or service hatch. Drivers produce heat and need adequate airflow — do not pack them tightly against insulation or other components. Confirm with your electrician that there is a service point for the driver before the false ceiling is closed up.
Colour temperature for cove lighting
Colour temperature is measured in Kelvin (K). Lower values are warmer (more yellow), higher values are cooler (more blue-white).
Living room and bedroom: 2700K to 3000K
For cove lighting in living rooms and bedrooms, warm white (2700K to 3000K) is the standard choice in Singapore. It creates a relaxed, cosy atmosphere and complements the warm wood tones and neutral palettes popular in Japandi and warm minimalist renovations.
3000K is slightly crisper than 2700K and works better if your walls are very white or your furniture is light-coloured. 2700K is better for warmer, moodier spaces.
Study and kitchen: 4000K
For cove lighting in a study or open kitchen where you want clarity and focus, neutral white (4000K) is more appropriate. It renders colours accurately without the heaviness of cool white.
Avoid 6000K (daylight) for cove lighting in any residential space — it is too harsh for indirect ambient use and will make the room feel clinical.
CCT tunable strips: best of both worlds
If you want flexibility, our CCT tunable COB strips allow you to adjust colour temperature from 2700K to 6500K via a controller. Pair with our tri-tone controller for simple switching between warm, neutral and cool modes, or with a Tuya smart controller for app and voice control.
Common cove lighting mistakes in Singapore HDB homes
1. Using 12V strip for long runs
As covered above, voltage drop causes uneven brightness on 12V strips over runs longer than 3 metres. Always use 24V for HDB cove lighting.
2. Undersizing the driver
Running a driver at or near its maximum rated wattage shortens its lifespan and can cause flickering. Always add 20% headroom when selecting driver wattage.
3. No diffuser channel
Installing the LED strip directly into a bare timber or gypsum channel without an aluminium extrusion diffuser means the strip adhesive is the only thing holding it in place against a hot surface. Aluminium channels dissipate heat, extend strip life and hold the strip flat for an even light line. Ask your contractor to install aluminium extrusion channels inside the cove.
4. Cove too shallow
A cove depth of less than 80mm risks the strip being visible from seated positions. Brief your ID or contractor on minimum 80mm depth before carpentry work begins.
5. Wrong colour temperature for the space
Installing 6000K daylight strips in a bedroom because they look bright in the shop is a very common mistake. The result is a cold, harsh bedroom that feels nothing like the warm, cosy space you planned. Test colour temperature samples before committing — our team is happy to advise via WhatsApp before you buy.
6. No service access for the driver
Drivers have a lifespan of 3 to 5 years under normal conditions. If the false ceiling is sealed with no access panel, replacing a failed driver means hacking open the ceiling. Always ensure a removable panel or hatch is planned before closing up.
What to buy for HDB cove lighting
Here is a complete shopping list for a typical 4-room HDB living room cove (approximately 6 metres of strip):
| Item | Recommended product | Qty |
|---|---|---|
| LED strip | TLG 24V COB LED Strip 8mm CRI95+ | 1 × 10m reel |
| LED driver | TLG 24V LED Driver 100W | 1 |
| Controller | Tri-Tone Controller or Tuya Smart Controller | 1 |
| Connectors | Solderless 8mm connector | As needed |
All products are stocked locally in Singapore with 1-year warranty. Need help sizing your driver or choosing the right colour temperature? WhatsApp us before you order.
Summary
Cove lighting is one of the best investments you can make in an HDB renovation — but only if the fundamentals are right. Use a 24V COB strip with CRI95+, position the cove 150 to 220mm below the slab, size your driver with 20% headroom, and choose a colour temperature that matches the room's purpose.
Get these right and your cove lighting will look professional and last for years. Get them wrong and you will be looking at a patchy, flickering ceiling that is expensive to fix after the false ceiling is closed.
If you have any questions about your specific flat layout or product compatibility, our team is available on WhatsApp and typically responds within a few hours.
