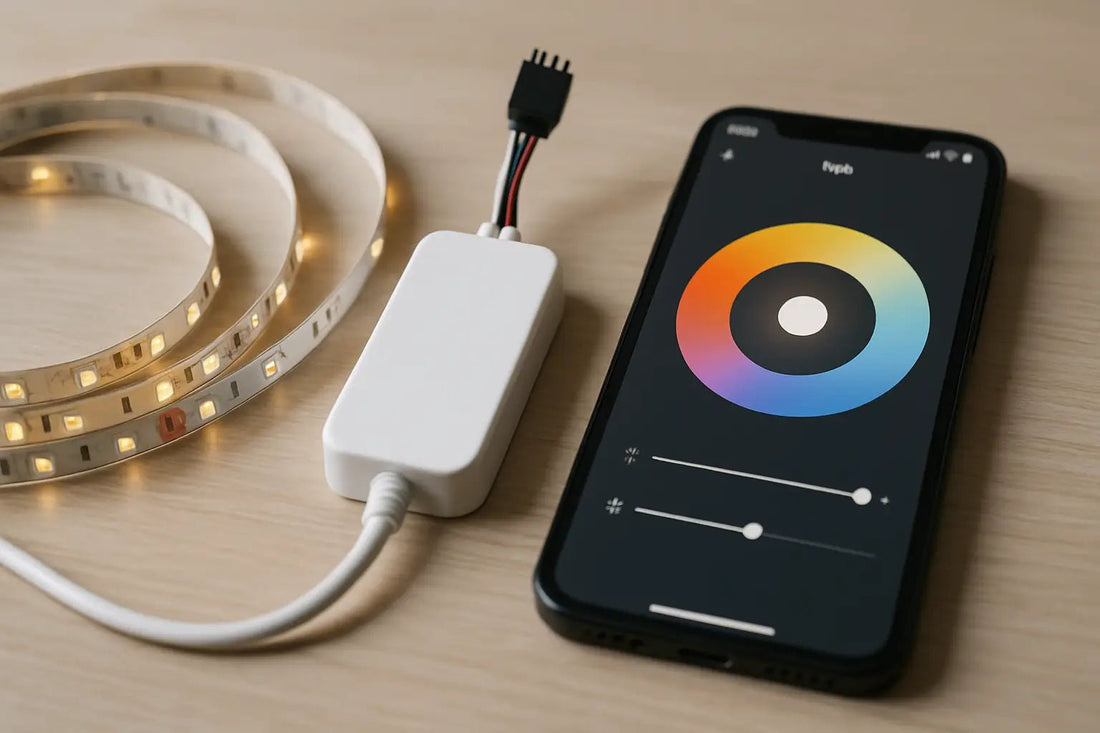

Tuya LED Strip Controller Setup That Works

You know the feeling: the electrician is finishing up, your cove is ready, and all you want is a clean, continuous glow - but the controller won’t pair, the strip flickers, or the whites look slightly “off.” A Tuya smart LED strip controller can be rock-solid, but only when the basics are right: the strip type, the driver, the wiring path, and the app pairing method.

This guide is written for real renovation setups (false ceilings, coves, wardrobes, feature walls) where you need the lights to behave consistently day after day - not just turn on once for a test.

Before you start: confirm what you’re actually controlling

Tuya controllers are not one-size-fits-all. Most setup headaches come from a mismatch between the controller and the LED strip type.

If your strip is single color (one steady warm white, for example), you need a single-color (dimming) controller.

If your strip is tunable white (CCT - warm to cool white), you need a CCT controller with two output channels (usually labeled WW and CW).

If your strip is RGB or RGBW/RGB+CCT, you need the matching multi-channel controller, and your wiring becomes more sensitive because you have more channels and higher total load.

Also check voltage. Most residential LED strip systems are either 12V or 24V DC. The controller and driver must match the strip voltage exactly. A 24V strip on a 12V system will look weak or may not light properly. A 12V strip on 24V can fail instantly.

Decide where the controller should live

In renovation projects, controller placement matters as much as wiring.

Put the controller where you can access it later (above a removable ceiling access panel, inside a cabinet void with an access hole, or in a reachable junction area). If it’s buried behind gypsum with no access, even a simple reset becomes a painful ceiling job.

Driver sizing: the quiet make-or-break detail

Your Tuya controller sits between the driver and the LED strip. The driver provides DC power. The controller modulates that power to dim or change channels.

Here’s the rule that avoids most flicker and “random offline” complaints: choose a driver with headroom.

Estimate your strip wattage: strip watts per meter x total meters. Then add 20-30% margin.

Example: 10W/m strip x 8m = 80W. Choose a driver around 100W.

Too small and you’ll see instability when the strip is at higher brightness, especially on longer runs or when the Wi-Fi radio in the controller is active. Oversizing slightly is normal practice and helps the system run cooler.

One more detail that matters: you want a constant-voltage DC LED driver (12V or 24V) for strip lighting. Don’t use a constant-current driver that’s meant for downlights.

Wiring: the clean, predictable way to do it

A Tuya LED strip controller setup is basically three sections:

1) AC power into the LED driver

2) DC output from the driver into the controller input

3) DC output from the controller to the strip

Most controllers are labeled clearly: “V+ / V-” for input, and then “V+ plus channels” for output (like WW/CW or R/G/B). If you’re using a tunable white strip, your strip will typically have three wires or pads: V+ (common positive), and two negatives (WW and CW). If you swap WW and CW, nothing breaks - but warm and cool will be reversed in the app.

Keep wire runs realistic (voltage drop is real)

Long strip runs plus thin wire equals voltage drop, which shows up as dim ends, uneven brightness, or weird color shift (especially on tunable white and RGB).

If your cove is long, it can be better to feed power at both ends or inject power mid-run rather than forcing the entire load through one skinny path.

In practical terms:

• Short run (a few meters): one feed is usually fine.
• Longer run (8-15m total): consider splitting into two runs from the controller, or use power injection with matching polarity.

If you’re doing this during renovation, plan the wiring before the ceiling closes. A small extra cable path now saves a lot later.

Tuya LED strip controller setup in the app (pairing that actually works)

Pairing problems are usually not “a bad controller.” They’re typically the wrong pairing mode, a 5GHz Wi-Fi issue, or the controller not truly being reset.

Step 1: use a 2.4GHz Wi-Fi network

Most Tuya-based controllers pair only on 2.4GHz. If your router combines 2.4GHz and 5GHz under one name, pairing may fail or stall. The simplest path is to temporarily enable a dedicated 2.4GHz SSID (or a guest 2.4GHz network) and pair there.

Also avoid special characters in the Wi-Fi password if you’re troubleshooting. It shouldn’t matter, but it removes one more variable.

Step 2: reset the controller properly

Power on the controller and use its reset button (or power-cycle method, depending on model). You’re aiming for a clear indicator behavior - usually a rapidly blinking light.

If you only get a slow blink, that may be a different mode (often AP mode vs EZ mode). Both can work, but the app steps are different.

Step 3: add device in the Tuya app

In the Tuya Smart or Smart Life app, add a new device and choose the correct lighting category (strip controller/light). If the app offers EZ mode first and it fails, switch to AP mode.

In AP mode, the controller broadcasts its own temporary Wi-Fi network. You connect your phone to that network, then return to the app to complete pairing. AP mode is slower, but it’s more forgiving in condos and dense Wi-Fi environments.

Step 4: name zones like you’ll live with them

Don’t name it “LED Strip 1.” Name it by location and function: “Living Cove,” “Master Headboard,” “Kitchen Under-Cabinet.” If you’re handing off to family members or tenants later, this avoids daily frustration.

Common problems (and what they usually mean)

The strip flickers, especially when dimmed

This is usually one of three things: driver too close to its limit, poor connections, or an incompatible dimming method for the driver/controller combination.

Check your driver sizing first. If you’re near max load, swap to a higher-wattage constant-voltage driver.

Then check connections. Solderless connectors are convenient, but a slightly loose clamp can cause micro-flicker that only shows up at lower brightness. If the strip is inside a cove and hard to access, it’s worth testing with a direct temporary connection before sealing everything.

The controller keeps going offline

Start with Wi-Fi signal. If the controller is above a metal ceiling frame, inside a metal cabinet, or tucked into a tight pocket surrounded by foil insulation, the signal can drop.

Relocating the controller a short distance can change everything. If relocation is impossible, consider using a wired-to-wireless bridge approach at the router end (like better access point placement) rather than blaming the controller.

Also confirm your router isn’t set to isolate smart devices on the network.

Whites look wrong on tunable white strips

If warm and cool are reversed, swap the WW and CW outputs at the controller.

If the “white” looks slightly green or pink, that’s usually strip quality (CRI and color consistency) rather than Tuya. A higher-CRI strip gives you more accurate whites and better-looking skin tones on camera. That matters in living rooms and bedrooms where the light is close to eye level.

Only part of the strip lights up

That’s often voltage drop on a long run, a damaged section, or the strip being fed from one end when it really needs power injection.

If the first half is bright and the far end is dim or off, don’t keep increasing brightness and hoping it will “push through.” Fix the power distribution.

Setup choices that depend on your renovation plan

One controller per room vs one controller per feature

If you want the whole living room cove to act as one scene, one controller is simpler.

If you want independent control (TV wall vs dining cove), split the zones. Yes, it costs a bit more in parts, but it saves you from living with a compromise every day.

When to choose 24V over 12V

For longer runs, 24V is generally easier to keep even because it reduces current for the same power. Lower current means less voltage drop and less heat in the wiring. For short accent runs, 12V can be fine. For long coves and continuous lines, 24V often behaves better.

COB strips and dimming feel

COB strips are popular in modern interiors because they look like a continuous line instead of visible dots. They also tend to make dimming feel smoother because you’re not noticing individual LEDs stepping down. That doesn’t fix a mismatched driver, but it does improve the everyday “quality feel” when the system is properly matched.

A quick compatibility checklist (the stuff that prevents rework)

Before your ceiling closes or your carpenter seals the cove, verify: your strip voltage matches the driver and controller, the driver wattage has 20-30% headroom, your controller is accessible for reset, and you have a reliable 2.4GHz Wi-Fi path to that location.

If you’re sourcing parts during a Singapore-style renovation timeline (multiple trades, tight handovers), it helps to buy from a retailer that stocks compatible drivers, controllers, strips, and connectors together so you’re not mixing random specs. That’s exactly the “Lighting Made Simple” approach we take at THE LIGHTING GALLERY, especially for tunable white and high-CRI strip builds where small mismatches show up immediately.

The goal isn’t to make your lighting “smart.” It’s to make it predictable - the kind of predictable that still feels good two months after move-in, when nobody wants to troubleshoot a ceiling cove again.
